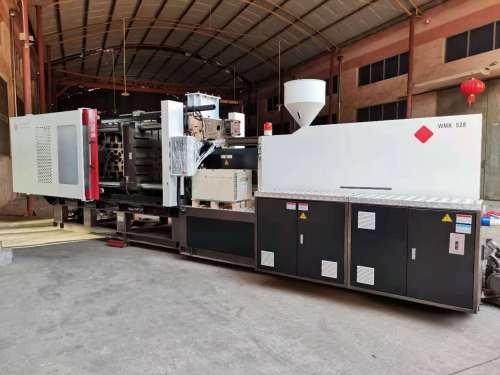

| INJECTION UNIT | item | unit | WMK-630S | ||
| A | B | C | |||
| screw diameter | mm | 85 | 90 | 95 | |
| screw L/D ratio | L/D | 19.6 | 18.6 | 17.5 | |
| theoretical shot size | cm3 |
2861 | 3188 | 3450 | |
| injection weight | g | 2605 | 2903 | 3210 | |
| Injection rate | g/s | 521 | 580 | 636 | |
| Plasticizing capacity | g/s |
68 | 82 | 95 | |
| Injection pressure | Mpa |
141 | 128 | 115 | |
| Screw speed | rpm | 0-105 | |||
| CLAMPING UNIT | Clamp force | KN | 6300 | ||
| Space between tie bars | mm |
880*880 | |||
| Toggle stroke | mm | 900 | |||
| Max. mold height | mm | 900 | |||
| Min. mold height | mm | 400 | |||
| Ejector stroke | mm | 260 | |||
| Ejector tonnage | KN | 166 | |||
| Ejector number | p | 17 | |||
| OTHERS | Max.pump pressure | Mpa |
16 | ||
| Pump motor power | KW |
60 | |||
| Heater power | KW | 42 | |||
| Machine dimension | m |
9.2*2.2*2.8 | |||
| Machine weight | t | 26 | |||
