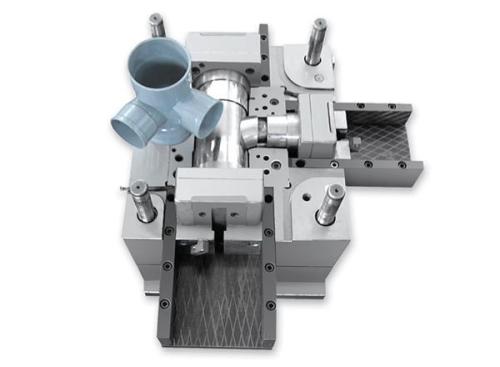

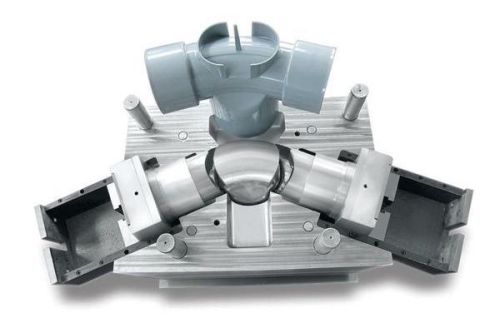

PVC fittings mold

Item No.: 00110
We produce various PVC product mold,especical for PVC fittings,the mold will be customized according to customers' samples or  drawings,the LOGO and slight modification from samples can be satisfied.
Add to Inquiry
PVC fitting mold are of high standard,the material is different from ordinary mold due to its corrosive feature.
a. CAVITY: 2316 HARDNESS:HRC 40-45
b. CORE: 2316 HARDNESS:HRC 40-45
c. MOULD BASE: S50
d. Ejector pin: SKD 61 (60HRC) Standard part
e. Guide Pin/Bush: SKD 61 (60HRC) Standard part
f. Sprue bush: China 2316
g. Angle Pin: YK30 (60HRC)
h. Wear plate: SKD 61 (60HRC) Standard part
