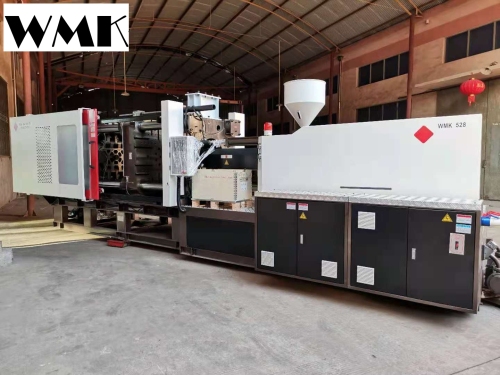

| INJECTION UNIT | item | unit | WMK-528S | |||
| A | B | C | D | |||
| screw diameter | mm | 75 | 80 | 85 | 90 | |
| screw L/D ratio | L/D | 23 | 21.2 | 20 | 18.9 | |
| theoretical shot size | cm3 |
1854 | 2110 |
2219 | 2670 | |
| injection weight | g | 1687 | 1920 |
2019 | 2430 | |
| Injection rate | g/s | 426 | 456 | 484 | 514 | |
| Plasticizing capacity | g/s | 68 | 74 |
80 | 100 | |
| Injection pressure | Mpa |
191 | 168 |
148 | 133 | |
| Screw speed | rpm | 0-138 | ||||
| CLAMPING UNIT | Clamp force | KN | 5280 | |||
| Space between tie bars | mm |
820*820 |
||||
| Toggle stroke | mm | 770 | ||||
| Max. mold height | mm |
810 |
||||
| Min. mold height | mm |
330 |
||||
| Ejector stroke | mm | 200 | ||||
| Ejector tonnage | KN | 150 | ||||
| Ejector number | p | 17 | ||||
| OTHERS | Max.pump pressure | Mpa | 16 | |||
| Pump motor power | KW | 55 | ||||
| Heater power | KW | 33.5 | ||||
| Machine dimension | m | 8.5*2.2*2.8 | ||||
| Machine weight | t | 26 | ||||
