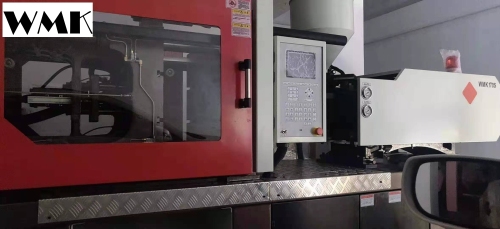

Technical parameters of 240ton servo injection molding machine.
| INJECTION UNIT |
item |
unit |
WMK-180S |
| A |
B |
C |
| screw diameter |
mm |
45 |
50 |
55 |
| screw L/D ratio |
L/D |
22 |
20.2 |
19.3 |
| theoretical shot size |
cm3 |
365 |
451 |
580 |
| injection weight(PS) |
g |
328 |
410 |
505 |
| Injection rate |
g/s |
210 |
254 |
286 |
| Plasticizing capacity |
g/s |
23.2 |
28.7 |
32.6 |
| Injection pressure |
M pa |
176 |
143 |
121 |
| Screw speed |
rpm |
0-180 |
| CLAMPING UNIT |
Clamp force |
KN |
1800 |
| Space between tie bars |
mm |
470*470 |
| Toggle stroke |
mm |
435 |
| Max. mold height |
mm |
520 |
| Min. mold height |
mm |
180 |
| Ejector stroke |
mm |
135 |
| Ejector tonnage |
KN |
50 |
| Ejector number |
p |
5 |
| OTHERS |
Max.pump pressure |
Mpa |
16 |
| Pump motor power |
KW |
18.5 |
| Heater power |
KW |
11 |
| Machine dimension |
m |
5.2*1.5*2.2 |
| Machine weight |
t |
5.5 |
