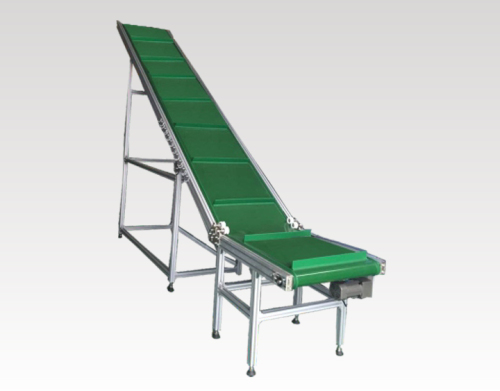

material conveyor

Item No.: 00121
Material  conveyor is widely used in many industry area,which save a lot of manpower.
Add to Inquiry
Description
Conveyor usually work with robot arm to transfer the products.to realize automatical operation of injection molding machine.
1.The conveyor belt is equipped with an elastic device to ensure reliable operation;

2.The conveyor length can be customized according to the needs of customers;

3.The height of the conveyor can be adjusted within a certain range;

4.The conveyor is equipped with blanking stop.


Model
Power
(W)
Conveying
Speed(m/min)
Belt
Width(mm)

Weight
(kg)
L
(mm)
L1
(mm)
D
(mm)
D1
(mm)
H
(mm)
H1
(mm)
W-200 60 0-9.5 250 55 1700   350 200 850-1100
W-300 60 0-9.5 350 60 1700   450 300 850-1100
W-400 60 0-9.5 450 70 1700   550 400 850-1100
W-500 60 0-9.5 550 85 1700   650 500 850-1100
W-200B 60 0-9.5 250 90 2250 500 350 200 1450 950
W-300B 60 0-9.5 350 110 2250 500 450 300 1450 950
W-400B 60 0-9.5 450 120 2250 500 550 400 1450 950
W-500B 60 0-9.5 550 145 2250 500 650 500 1450 950
W-200T 180 0-9.5 250 97 2350 700 350 200 970
W-300T 180 0-9.5 350 112 2350 700 450 300 970
W-400T 180 0-9.5 450 127 2350 700 550 400 970
W-500T 180 0-5.5 550 150 2350 700 650 500 970
