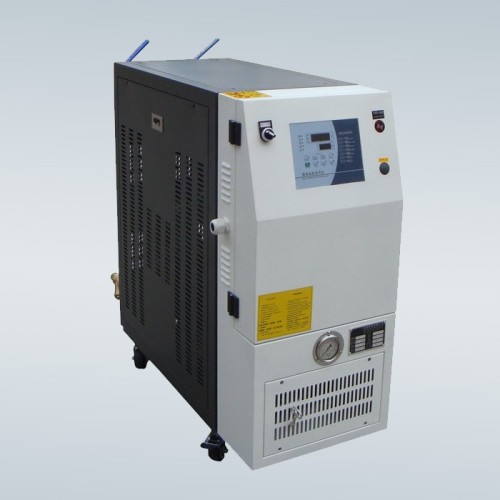

mold temperature controller

Item No.: 00122
Add to Inquiry
Description
Mold temperature controller is used to control the mold temperature at its suitable range.

1.PID microcomputer control, control temperature accurately;

2.Overload protection of water (oil) pump can effectively guarantee its service life;

3.Low liquid level alarm device, safe operation of the system;

4.Automatic exhaust function

5.Hot water by-pass pressure relief circuit.

Model

Max Temp

Accuracy of  Temperature
conttrol

Heat
(kw)

Pump (kw)

Flux L/min

Heating
Medium

Cooling
Mode

Mold Tie
(Inch)

External Dimensions
(L*W*H)

Weight
(kg)
WO-6 200  PID±1 6 0.37 35 oil   3/8*2*2 870*370*630 65
WO-9 200   PID±1 9 0.75 50   3/8*4*2 870*370*630 68
WO-12 200   PID±1 12 1.5 80 Indirect 3/8*4*2 920*440*660 70
WO-18 200  PID±1  9*2 1.5/202 120/200 Cooling 1.5" 920*440*660 100
WO-24 200  PID±1  12*2 2.2/3.75 200/380   1.5" 980*500*980 100
